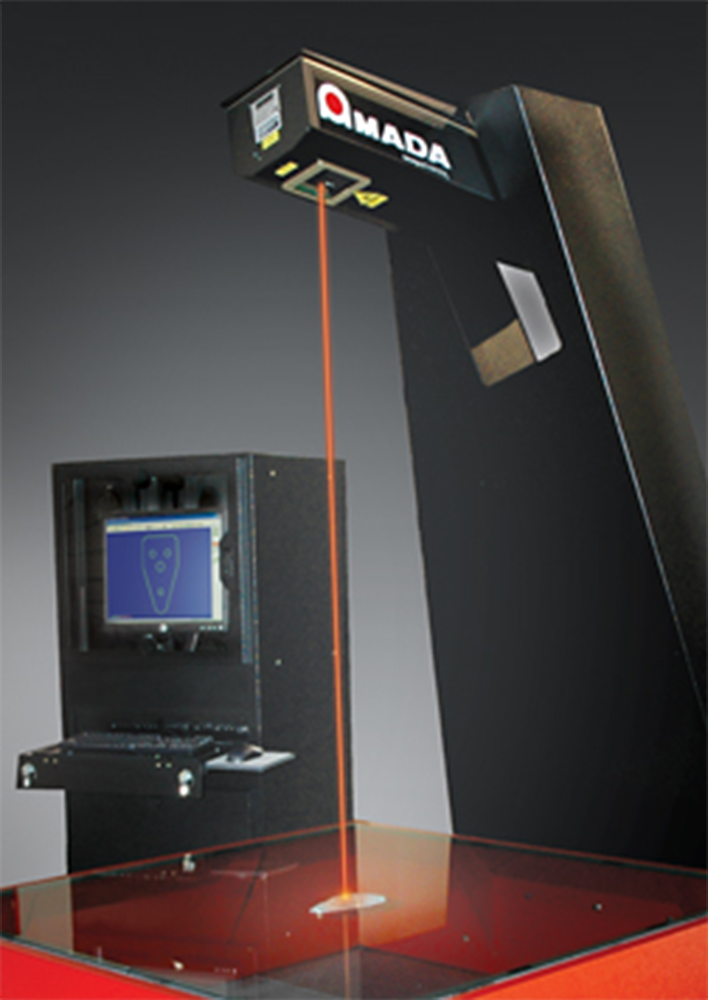

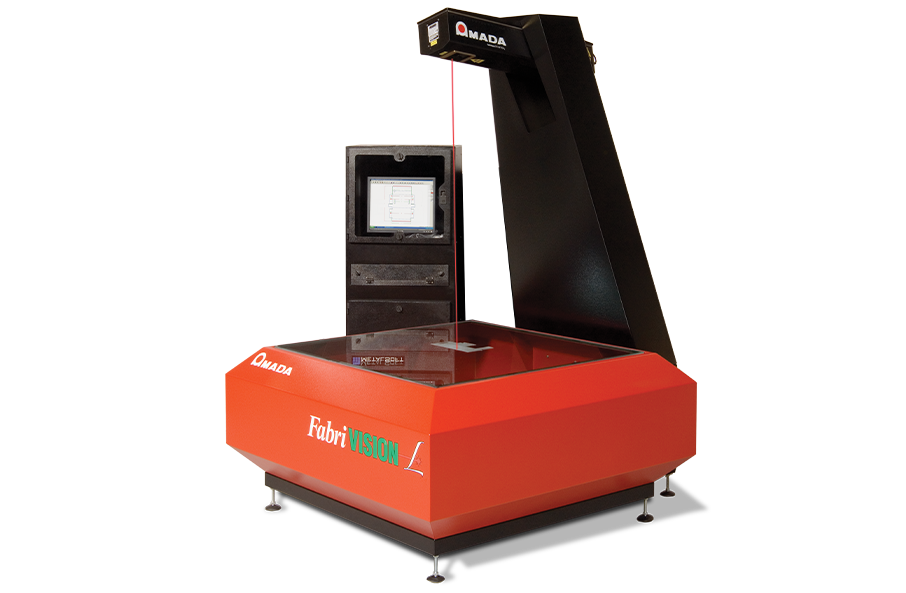

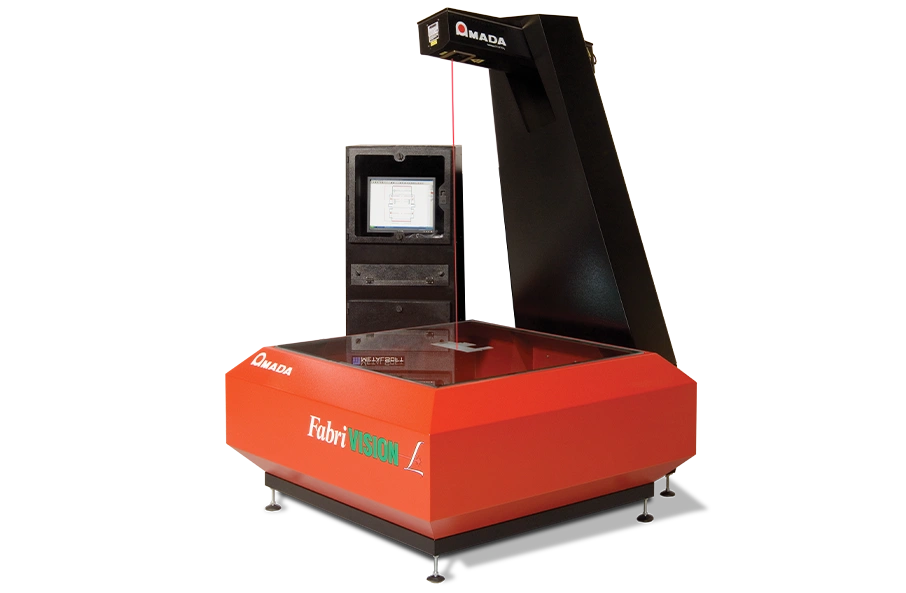

FabriVISION Series





Integrated Sheet Metal Inspection Systems



FVL-HD-3030, FVL-HD-4848,
Plus FabriVISION 3Di Laser
with 3D intelligence technology






FabriVISION maximizes the throughput of your turret and laser by eliminating delays in the inspection process.

The KEY to quality fabrication is building quality control into the production process. FabriVISION provides a consistent,
reliable inspection process while increasing your shop’s productivity.



Integrated Sheet Metal Inspection System

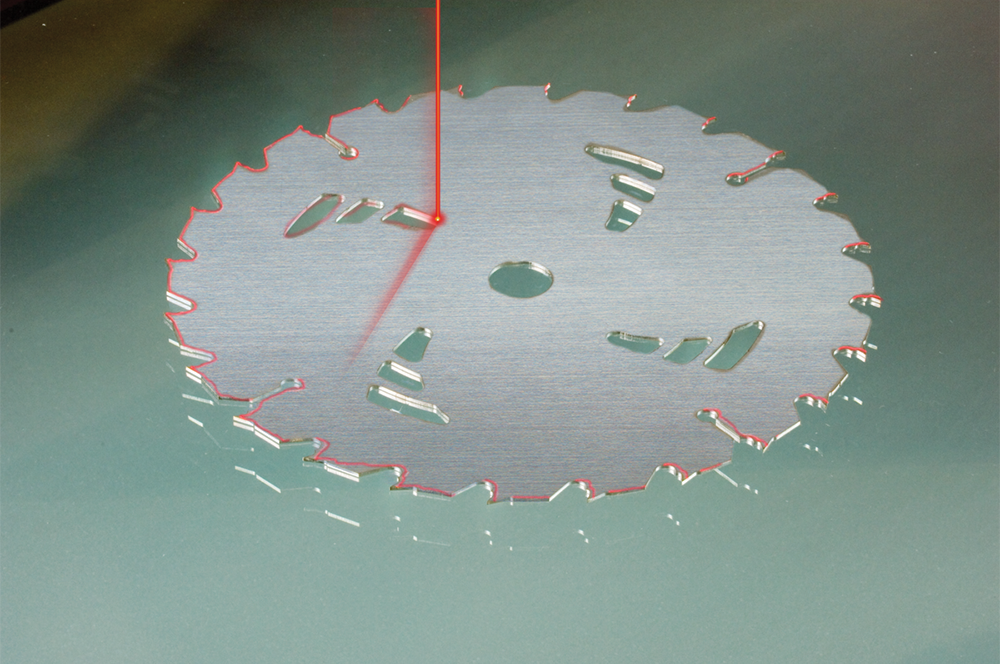

Now you can quickly inspect every laser-cut and punched part
with unparalleled accuracy and precision. FabriVISION is a noncontact, laser inspection system that allows you to examine any opaque flat part including plexi-glass, gasket materials, and other rigid parts. If you’re a quality-conscious sheet metal fabricator who strives to stay ahead of your competition, FabriVISION can increase the performance, productivity, and profitability of your fabrication


Cutting-Edge Laser Technology

Our latest generation High-Definition Laser projector scans parts in as little as 12 seconds. The special HD Laser projector is designed to be virtually maintenance free.

Self-Calibration
FabriVISION automatically self-calibrates before scanning – ensuring precise scans every time.

Shop-Ready Machine

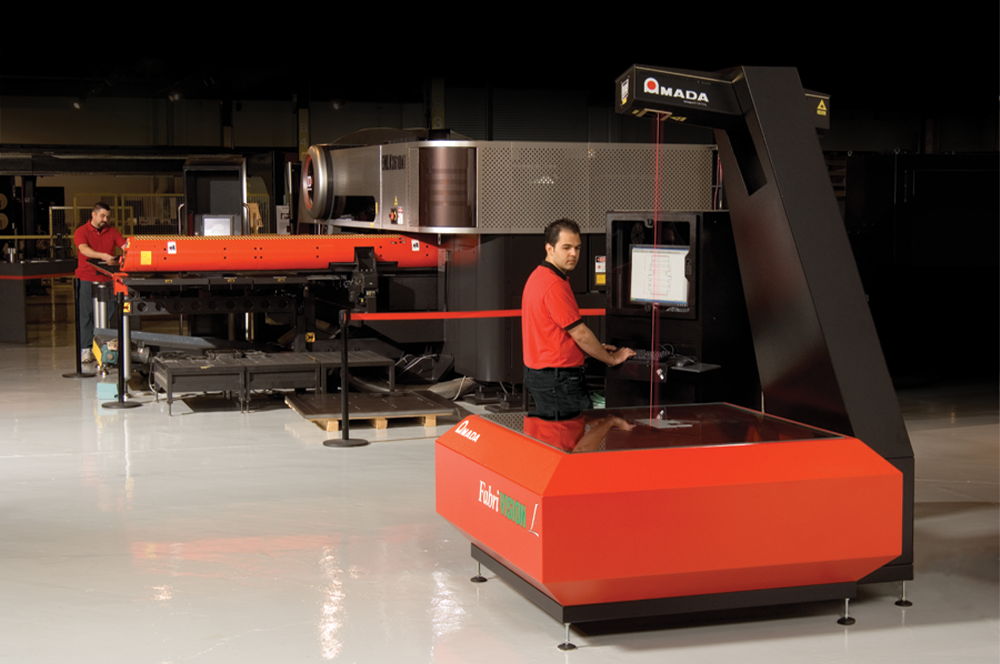

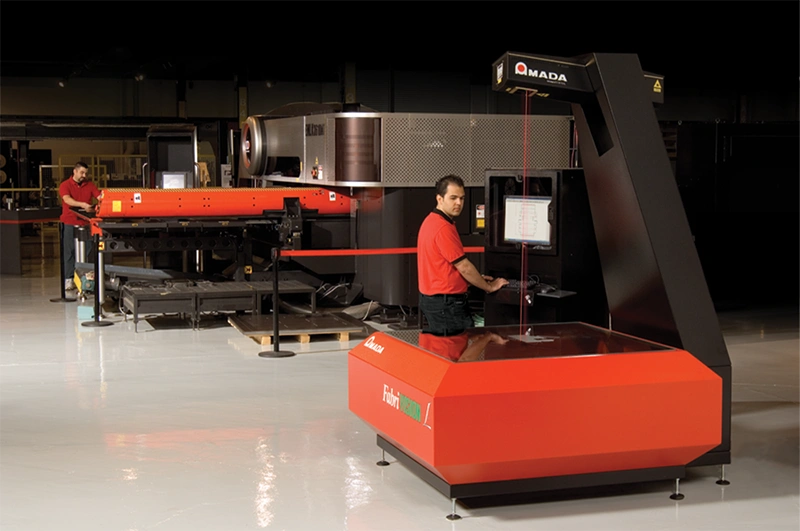

Unlike other inspection devices, FabriVISION has been engineered to work alongside your
turret punch presses and laser cutting systems. For high-resonance shop environments with
vibration control issues, optional stabilizer boots can isolate FabriVISION from impact tremors –
while precise part inspection continues like clockwork.

Industrial Computer Casing

FabriVISION comes with our custom-designed shop-ready enclosure, complete with air flow &
filtration management, and a power-filter unit to protect your investment.

Heavy Duty Glass Top
FabriVISION’s glass top is engineered to handle parts weighing up to 200 lbs. Additional glass
tops increase convenience and flexibility.


First Article Inspection

Since FabriVISON is fully integrated with AP100US, inspections can be performed by the machine operator right at the production station. A full scan is completed in seconds while comparing each measurement to CAD specifications. This reduces the time between CAD drawing and first article inspection up to 96%.


Variable Height Scanning

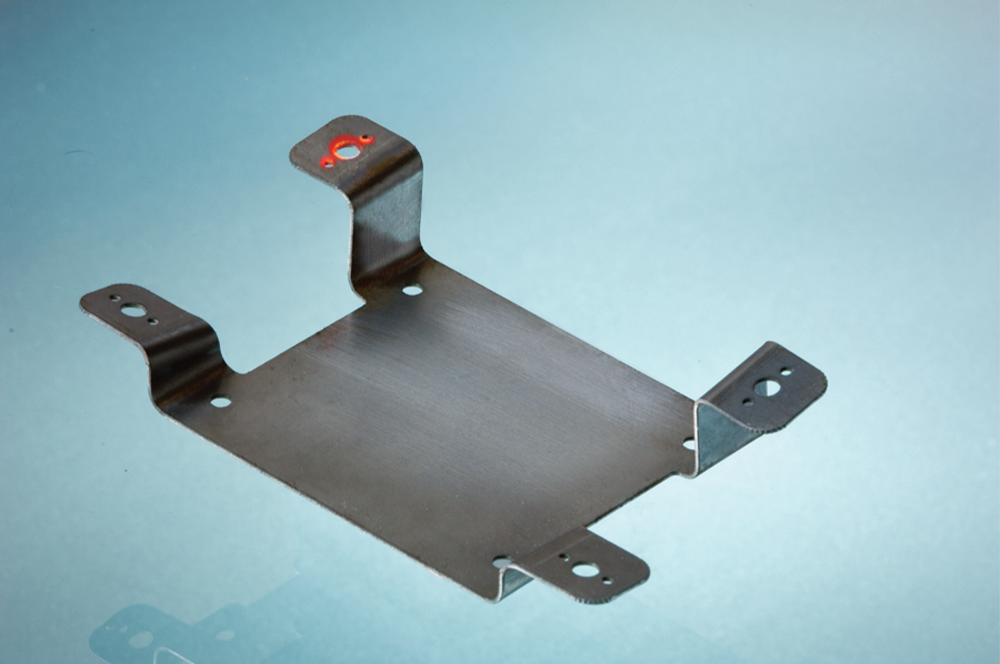

FabriVISON detects a part’s form features by utilizing its built-in scan height adjustment function. Variable height scanning allows the operator to precisely measure holes within formed and/or embossed parts.


Visual Verification

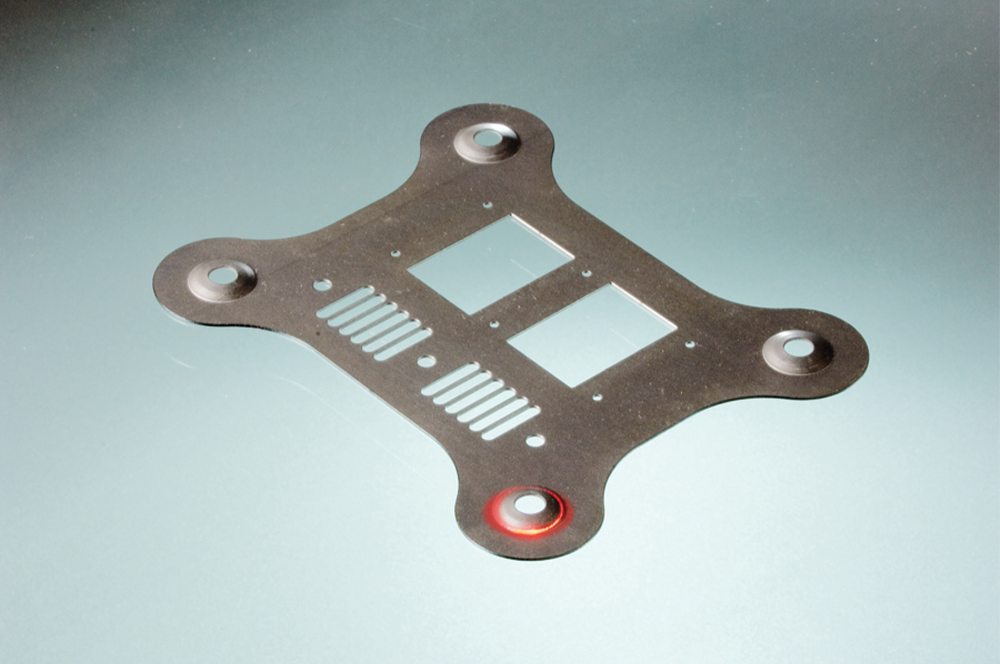

FabriVISION is able to qualify form features by projecting an outline of the form directly onto the part surface while the part is being visually inspected. This enables the operator to verify the proper placement of the formed feature.


Reverse Engineering

The scanning process captures the complete profile of existing parts or templates at laser speed. Then, the data is stored in AP100US PRT files or DXF files. The software also allows you to manipulate the scan data and part profile on-screen so that you can optimize the quality of the CAD model.


SPC and Quality Reporting

Within seconds of completing a scan, FabriVISION generates a detailed report from the inspection file to your exact specifications. This automatically-generated color report, records data files of the scanned part and includes any variances from the CAD data. SPC functions also include charting data in a Histogram, Run Chart, and X Bar/Range Plot for specific analysis of part production processes over a specified period of time.

The system provides complete traceability and automatic
documentation to meet requirements for ISO and QS reporting in addition to data files you can easily export to common Microsoft Windows® based programs. The simplicity and speed of FabriVISION combined with it’s automated documentation capabilities, enable you to upgrade your quality process with minimal cost, training or effort.



FabriVISION offers an array of features that can increase your shop’s reach and service to clients..





General Fabrication




Height Measurement

3Di can measure heights up to 8?.



Form Feature Measurement
Form features such as emboss and bridge lance are easily measured using 3Di.



Edge-to-Edge Measurement
Edge-to-edge measurement at variable heights is supported.



Hole-to-Hole Measurement
Critical hole-to-hole measurement is a simple mouse-click away.



Virtual Warpage Correction
Using the latest interpolation algorithm and height scan technology, 3Di can account for and correct “warpage” caused by processing – producing improved flat inspection.



Angle Measurement
Angle measurement relative to the scanning surface is achieved through the 3Di plane recognition feature.
